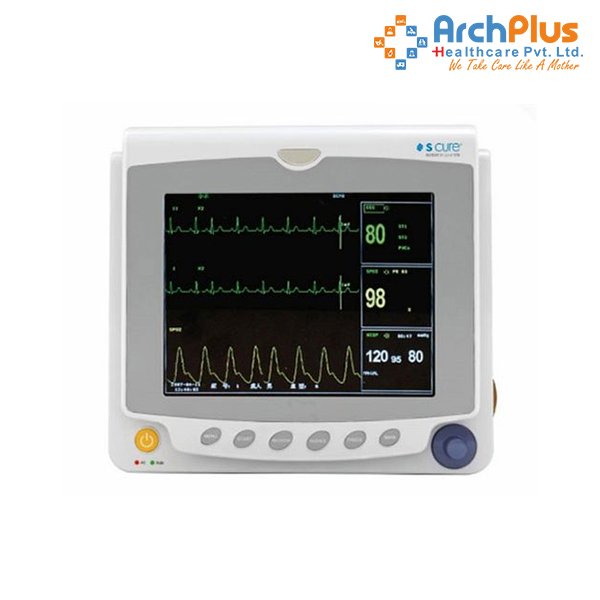

Multipara Monitor 8400
- Alarm: Audible and visual alarm, alarm events review
- High Resolution with screen size: 8.4″ Colour TFT display
- Light weight, compact and portable
- Built-in rechargeable lithium battery
- Parameters display – SpO2-PR, NIBP, and ECG
- ECG waveforms of 7 lead display on the same screen
- 72-hours graphic and tabular trends of all the parameters
- 72 alarm events of all parameters recall
- 32 seconds full—disclosure waveform review
- 500 NIBP measurement data can be stored and recall
- Data and waveforms colour can be stored and recall
- Arrhythmia analysis and S-T Segment analysis and it detection
- Suitable for Adult, Paediatric and Neonatal Patients
- Apnea detection: 10 ~ 40 Seconds
- AC to DC Adapter
- Pacemaker Detection
- Drug Calculation
- Approx. 2.5 hour’s Battery Backup
OPTIONAL: 2- TEMP, RESP, EtCO2, IBP, Printer and Networking, Central Monitoring Software & Cable
Facebook
Twitter
WhatsApp
Product Details
SpO2
- Measurement Range: 0 ~ 100%
- Accuracy: ±1% [for 70 ~ 100%], 0 ~ 69%, Unspecified
- Pulse Rate (PR)Range: 30 ~ 250 bpm
- Accuracy: ±2 bpm or ±2%
ECG
- Lead Mode: 3 lead or 5 lead
- Lead Selection: I, II, III, avR, avL, avF and V
- Heart Rate Range:
- Adult: 35 ~ 300 bpm
- Paediatric/ Neonatal: 15 ~ 300 bpm
- ECG Waveform: 2 Channels
- Accuracy: ±1 bpm or ±1%, whichever is greater
- S—T segment detection: Measurement range : 0.2 mv ~ 2.0mv
- Method: RA-LL impedance
NIBP
- Method: Oscillometric
- Modes: Manual / Auto / Continuous
- Auto Measure time: Adjustable
- Measurement Range: 10 ~ 270 mmHg
Range
- Adult: 0 ~ 120 breathe / min
- Paediatric / Neonatal: 0 ~ 150 breathe / min
- Apnea Alarm: 10 ~ 40 s
Temperature [Optional]
- Range: 0 ~ 50°C; Accuracy: ±0.1°C
